Wayne Dalton Commercial Sectional Steel Doors
Here at Doors By Mike we provide a wide selections of steel and aluminum sectional doors. They are available with different panel profiles, options for tracks and hardware, and ventilation options for different applications.
Sectional garage doors are great for automotive showrooms and repair centers, service stations, car washes, fire houses, restaurants, and sports complexes etc.
The Wayne Dalton C-2400 Sectional Steel Door is an excellent value and is available in a variety of sizes.
Featuring nominal 24-gauge ribbed steel sections, the C-2400 is available with a number of lite and insulation options
Model C-2400
Standard Features Overview
THERMAL EFFICIENCY
R-Value: 7.64 (with optional insulation)
U-Value: 0.13 (with optional insulation)
CONSTRUCTION
Max Height: 16’1” (4,907 mm)
Max Width: 20’2″ (6,157 mm)
Exterior Steel: Nominal 24-gauge
Exterior Surface: Smooth or stucco-embossed (both ribbed)
Standard Springs: 10,000 cycles
Exterior Color: White, Brown
Joint Profile: Tongue-and-groove
WARRANTY
Terms: Twelve (12) month limited
The Wayne Dalton C-2400 Sectional Steel Door is designed and built to ensure an economical, low maintenance long life for moderate commercial use.
Available with a smooth or stucco-embossed finish in white or brown, the exterior of the C-2400 features a ribbed surface for increased strength and added visual appeal. The door’s unique box-stiledesign, with a full, 2” thickness and 3” width, plus tongue-and-groove construction, adds vertical stability and strength. The stiles are bonded to the skin surface with high strength adhesive, resulting in the strongest possible unit.
MATERIALS AND CONSTRUCTION
Wayne Dalton’s C-2400 Sectional Steel Doors feature pre-finished interior and exterior skins on nominal 24-gauge hot-dipped galvanized steel sections roll-formed for ultimate strength and durability. Fully-fitted 3” wide boxed stiles are adhered with adhesive, preventing rust and leakage associated with rivets.
The standard bottom door seal, along with optional seals on the perimeter and between sections, greatly reduce air leakage, adding to the thermal efficiency of the building.
Additional options include insulation and weather stripping that provide a U-value of 0.13 and an R-value* of 7.64; factory-installed vision lites or aluminum full- view sections; electric operator; and special engineering to meet wind load requirements.
OPTIONS
- Vision lites
- Aluminum full-view sections
- Chain hoist operation
- Motor operation
- Sensing edges
- Photo eyes
- High cycle spring (25k, 50k, 100k)

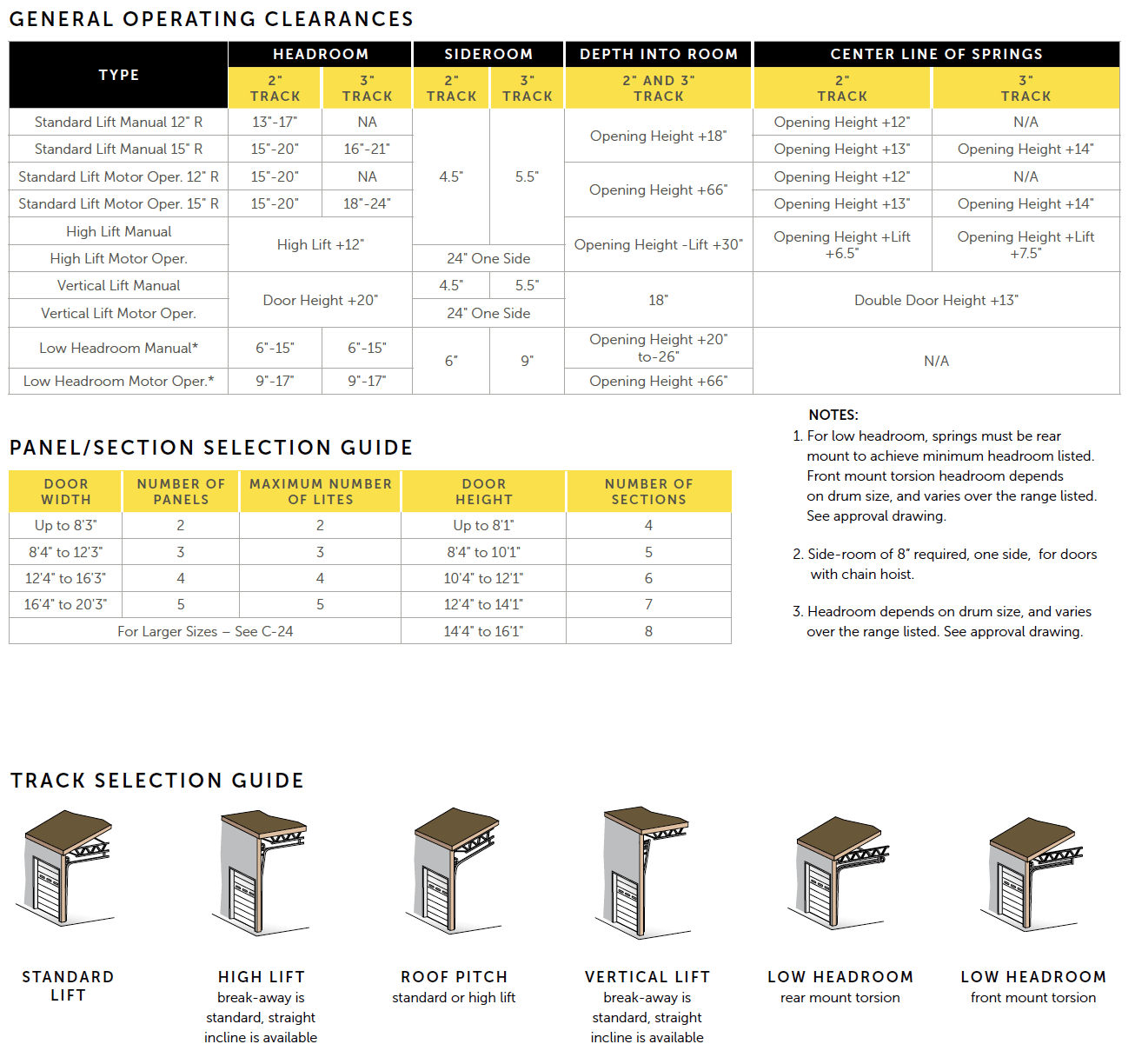

- 3” track option
- Solid shafts
- Perimeter weatherseal
- Special track designs
- Mullions
ADDITIONAL OPTIONS FOR COMMERCIAL SECTIONAL DOORS
Simple Install System – Wayne Dalton’s track and hardware system provides for easy, one person installation. Components include: one-piece vertical lift track and simplified hardware.
Impact Section – Wayne Dalton’s Impact Section is the perfect solution for doors exposed to damage from fork lifts and other warehouse traffic. Impact resistant composite skins surround an expanded polystyrene core. The Impact Section is adjustable to multiple door thicknesses.
